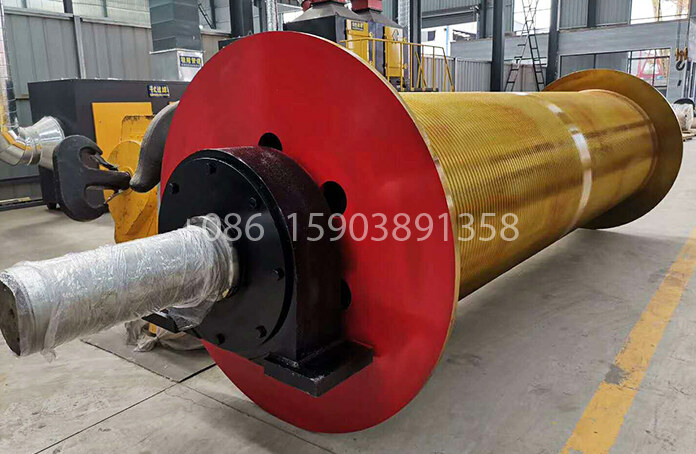

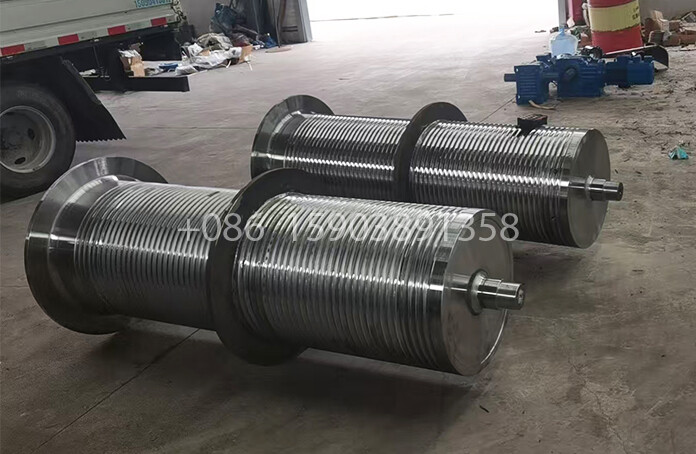

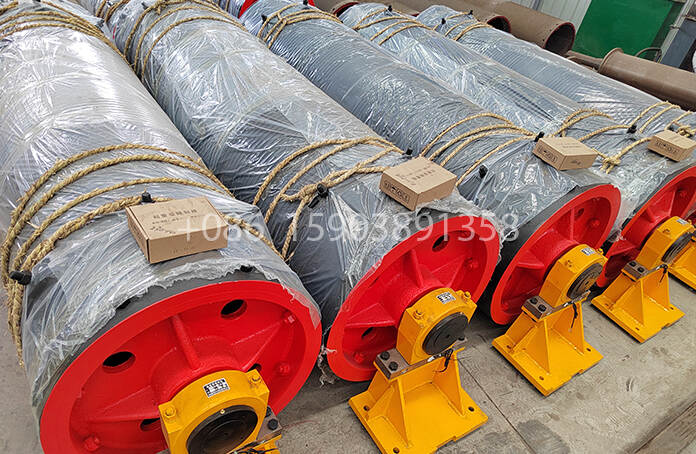

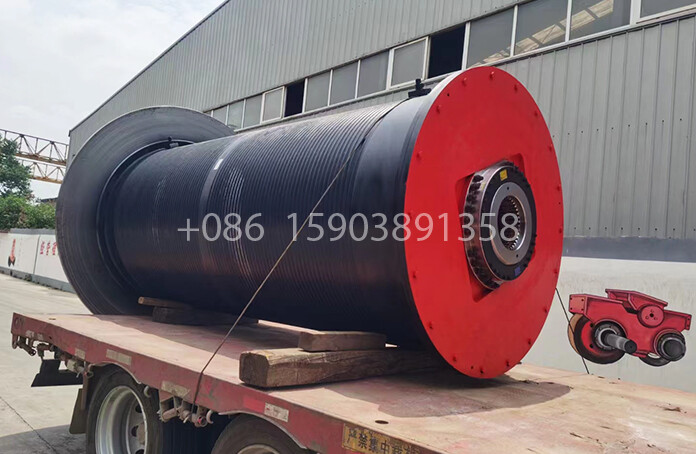

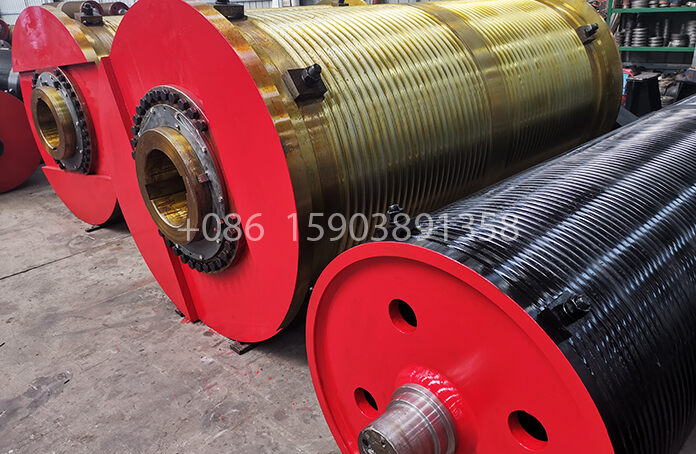

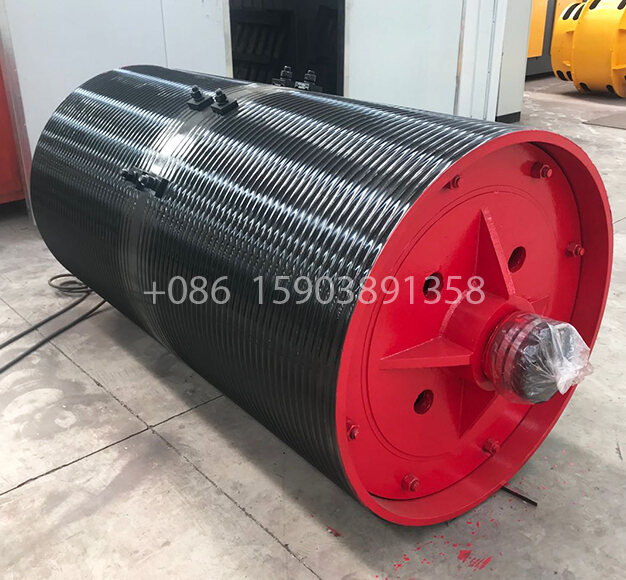

Crane Drum
The crane drum assembly is a core transmission component of a crane, primarily responsible for the orderly winding and release of the wire rope, ensuring a smooth and efficient lifting process. It must be used in conjunction with the hook and pulley system. Its design directly affects the load capacity and operational safety of the equipment; material and structural stability are particularly important. It plays a crucial role in industrial material handling, construction, and other scenarios. A high-performance drum assembly can significantly improve operational efficiency.
Product Description
The crane drum assembly is an indispensable core component of a crane, primarily used for the winding and release of the wire rope. Working with the hook and pulley system, it achieves the lifting and lowering of heavy objects. Based on its function and usage requirements, specific details are as follows:
Core Positioning
The core transmission component of the crane, used in conjunction with the hook and pulley system. Its core function is to achieve the orderly winding and release of the wire rope, ensuring smooth and efficient crane lifting operations.
Core Function
Plays a crucial role in industrial material handling, construction, and other scenarios. Its performance directly affects operational efficiency, equipment load capacity, and operational safety.
Specific Function 1 (Lifting)
The drum drives the rope or cable to lift and lower goods, fulfilling the crane's core lifting function.
Specific Function 2 (Supporting Ropes)
Provides support for the ropes and cables, effectively preventing slack or twisting and ensuring smooth operation.
Specific Function 3 (Protecting Ropes)
Prevents unnecessary friction during lifting and lowering, reducing rope damage and extending rope lifespan.
Specific Function 4 (Speed Control)
Adjusts the drum's operating speed to control the lifting and lowering speed of goods, adapting to the speed requirements of different operating scenarios.
Key Requirements
The design of the drum assembly is crucial, directly determining the equipment's load capacity and operational safety; therefore, the selection of materials and structural stability are of paramount importance.
Operational Advantages
A high-performance drum assembly, used in conjunction with a hook pulley system, can significantly improve the crane's operating efficiency and ensure safe and stable operation.
Product Feature
Clear Core Function
Focused on the orderly winding and release of wire rope, working in conjunction with hooks and pulley blocks to achieve heavy lifting, it is the core guarantee for the crane's lifting function.
Smooth and Efficient Operation
Ensures orderly winding and release of wire rope, avoiding slack and twisting, guaranteeing a smooth lifting process and improving operational efficiency.
Comprehensive Functions
Combines four core functions: lifting, rope support, rope protection, and speed control, meeting the diverse needs of crane operations.
Impact on Equipment Performance
Design quality directly affects the crane's load capacity and operational safety, and is crucial for operational safety and stability.
Strong Adaptability
Widely used in various crane operation scenarios such as industrial handling and construction, with high compatibility with hooks and pulley blocks.
Enhanced Efficiency
High-performance drum assemblies can work in conjunction with hook and pulley blocks, greatly improving overall operational efficiency and reducing operational hazards.
Rope Protection
Effectively avoids friction damage during rope lifting, extending rope life and reducing equipment maintenance costs.
Wheel Assembly Materials
Main Materials of the Product
1. Drum Body: The core is made of high-quality carbon structural steel (mostly Q235B, Q355B) or alloy steel, forged, welded, and aged. It possesses high strength, high rigidity, and good load-bearing capacity, stably withstanding the tension of the wire rope and the weight of the goods, and resisting impact forces during operation.
2. Drum Bushing/Surface: To protect the wire rope and reduce friction, a wear-resistant bushing (mostly made of wear-resistant alloy steel or polyurethane) can be added to the drum surface, or the drum surface can be hardened through quenching, chrome plating, etc., to improve wear resistance and prevent wire rope wear.
3. Shaft Components: The drum shaft is made of high-strength alloy steel (such as 40Cr, 42CrMo), precision machined and heat-treated, possessing good toughness, wear resistance, and bending resistance, ensuring smooth drum rotation and reliable power transmission.
4. Transmission Components: Gears, couplings, and other transmission components that mate with the drum are made of high-quality alloy steel, hardened and tempered to ensure high hardness and smooth transmission, guaranteeing stable power delivery and adaptability to speed adjustment requirements.
5.Auxiliary Components: Connectors and fasteners are made of high-strength carbon steel or stainless steel, rust-proof and corrosion-resistant, ensuring secure connections and overall structural stability of the drum assembly; seals are made of oil-resistant, wear-resistant rubber or polyurethane to prevent lubricant leakage and protect internal components.
