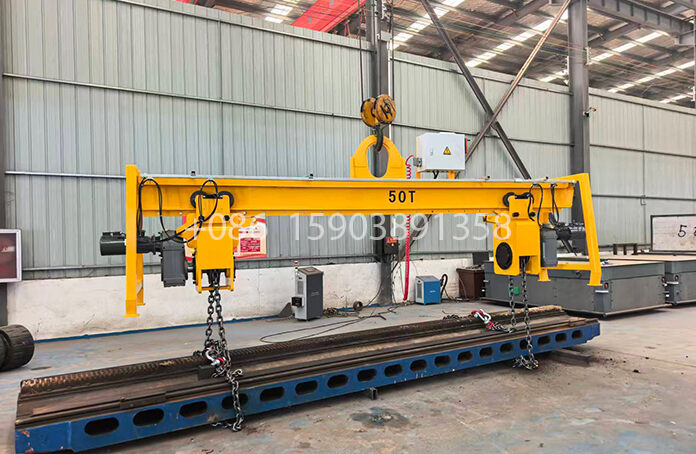

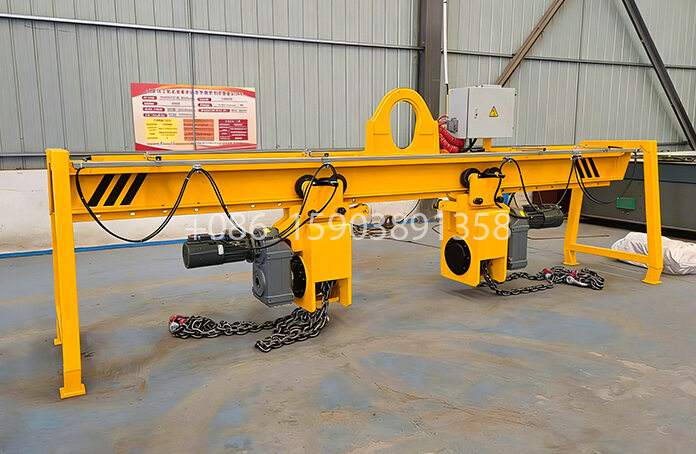

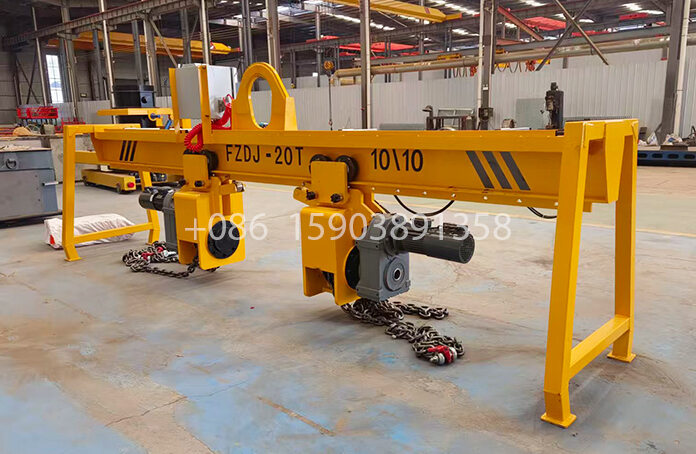

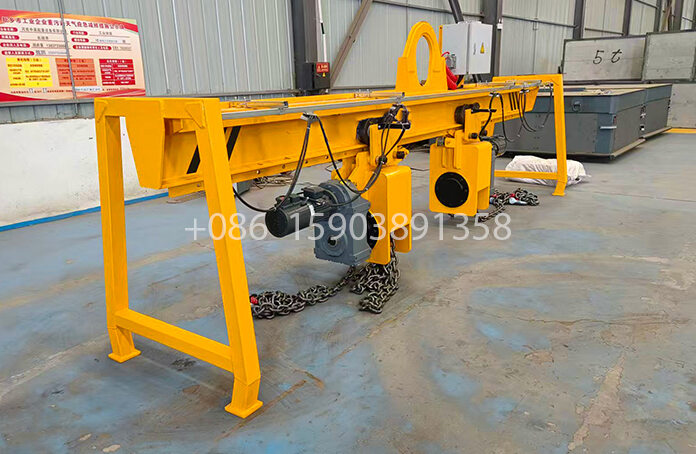

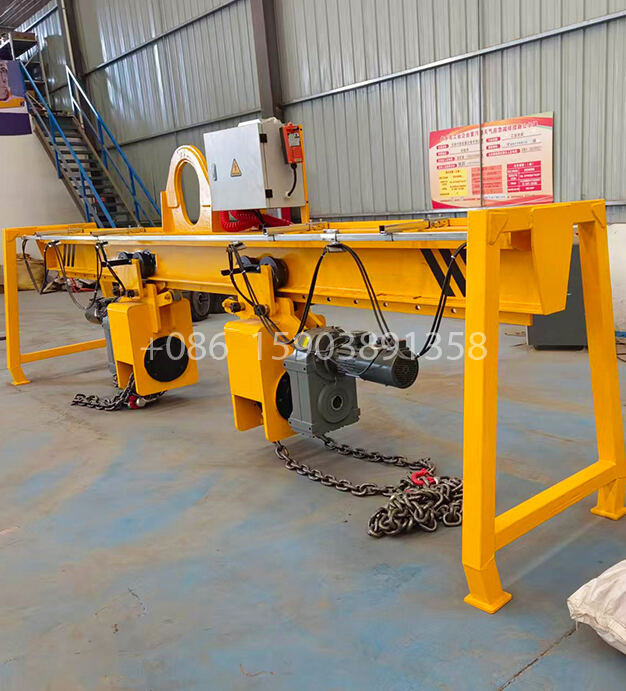

Flip Lifting Equipment
The tilting lifting gripper is a specialized lifting and tilting device with remote control operation, convenient mobility, and strong adaptability. It can flexibly tilt large, irregularly shaped objects 360°, without being limited by the size or shape of the object, and is suitable for the lifting and tilting needs of multiple industries. It is easy to operate, safe and reliable, and can be used with overhead cranes and hoists, effectively improving tilting efficiency and reducing user costs. It is widely used in power, shipbuilding, machinery manufacturing, and many other industries.
Product Description
The tilting lifting gripper is a specialized device for lifting and tilting large, irregularly shaped objects. Based on its characteristics, operational requirements, and applications, the specific details are as follows:
Core Positioning
Specialized lifting and tilting equipment. Its core function is to achieve the lifting and 360° tilting of various objects (especially large, irregularly shaped objects), adapting to the tilting operation needs of different scenarios.
Operation Method
It adopts remote control operation, allowing operators to operate away from the object being tilted. Operation is simple, flexible, and reliable, featuring gentle lifting and lowering and smooth tilting.
Flipping Function
Enables 360° rotation of objects, allowing for flipping to any desired angle. It ensures stability and prevents slippage or tipping when flipping large, irregularly shaped objects.
Mobility
Equipped with a mobile function, the equipment can be moved directly to the site of the object to be flipped without needing to move large workpieces, making flipping operations convenient and efficient.
Fixing and Adaptability
Utilizes a suspension chain to secure the object being flipped. Auxiliary chains and lifting straps can be replaced to accommodate the irregular shape and size of the object. For special objects, auxiliary grooved wheels and lifting straps can be replaced to ensure no lifting marks are visible.
Compatibility
Can be used with overhead cranes or in the field with a crane. As long as the crane can lift the equipment, flexible and quick flipping is possible.
Adaptability
Not limited by the length, width, size, or shape of the object, it can perform flipping operations on any object, demonstrating excellent adaptability.
Application Areas
Widely applicable to hoisting and tilting operations in industries such as power, shipbuilding, docks, machinery manufacturing, steel structure production, stone processing, and electric vehicles.
Core Advantages
This equipment significantly improves tilting efficiency and helps users greatly reduce operating costs.
Operation Requirements
Uses a 380V three-phase power supply. Before use, connect the power and test the operation with the remote control. During tilting and hoisting, adhere to balanced and standardized operating principles. Select the appropriate specifications and model based on the object's weight, and avoid overloading.
Product Feature
Remote Control Operation, Safe and Reliable
Remote control operation allows operators to work away from the object being tilted. Tilting large, irregularly shaped objects prevents slippage and tipping, ensuring high operational safety.
Flexible Tilting, Controllable Angle
Features 360° rotation, allowing tilting to any desired angle. Simple operation and flexible, reliable use.
Gentle Lifting and Lowering, Convenient Operation
Remote control enables gentle lifting and lowering, and smooth tilting, eliminating the need for complex manual operations and reducing manual difficulty.
Mobile Operation, Convenient and Efficient
Equipped with a mobile function, it eliminates the need to move large workpieces; simply move the equipment to the site for immediate rotation, saving operation time.
High Adaptability and Flexible Adjustment
Utilizing a suspension chain for fixation, auxiliary chains and lifting straps can be replaced to accommodate the irregular shape and size of the items being rotated. For special objects, auxiliary grooved wheels and lifting straps can be replaced, achieving a seamless lifting operation.
High Efficiency and Low Cost
This equipment effectively improves rotation efficiency and significantly reduces user operating costs.
Strong Compatibility and Wide Applicability
It can be used with overhead cranes or in conjunction with a hoist for on-site rotation in the field, offering convenient and quick operation.
No Object Restrictions
Stable rotation can be achieved regardless of the length, width, size, or shape of the object.
Wide Application
Suitable for the lifting and rotation needs of multiple industries, including power, shipbuilding, machinery manufacturing, and steel structure production.
Wheel Assembly Materials
Main Materials
1. Main Structure: The core is made of high-quality carbon structural steel (mostly Q235B or Q355B), welded and treated with anti-corrosion coating. It possesses high strength and rigidity, capable of bearing the weight of various irregularly shaped large objects, ensuring stable and reliable tilting.
2. Suspension Components: The return chain is made of high-strength alloy steel, hardened, and features wear resistance, high load-bearing capacity, and resistance to breakage. Auxiliary chains and lifting belts are made of high-strength synthetic fiber or alloy steel, offering good toughness and stable load-bearing capacity, and can be flexibly replaced according to the needs of the object.
3. Auxiliary Components: The auxiliary grooved wheels are made of high-quality wear-resistant alloy steel, precision machined and heat-treated, with a smooth surface to prevent scratches on objects and ensure no lifting marks. Connectors and fasteners are made of high-strength carbon steel or stainless steel, rust-proof and corrosion-resistant, ensuring a firm connection.
4. Control and Electrical Components: The remote control uses high-quality waterproof and dustproof electrical materials, ensuring stable signal and sensitive operation. Internal electrical components are selected from high-quality parts that meet industrial standards and are compatible with 380V three-phase power supply, ensuring stable and safe equipment operation.
5. Mobility Components: The casters are made of high-strength, wear-resistant rubber or cast steel, offering strong load-bearing capacity, wear resistance, and impact resistance. They allow for flexible movement and adaptability to various work site environments. The axles are made of high-strength alloy steel, ensuring smooth rotation and resistance to wear.
