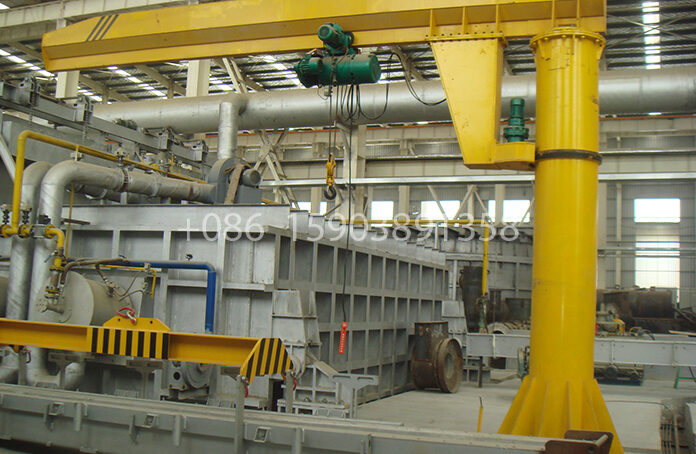

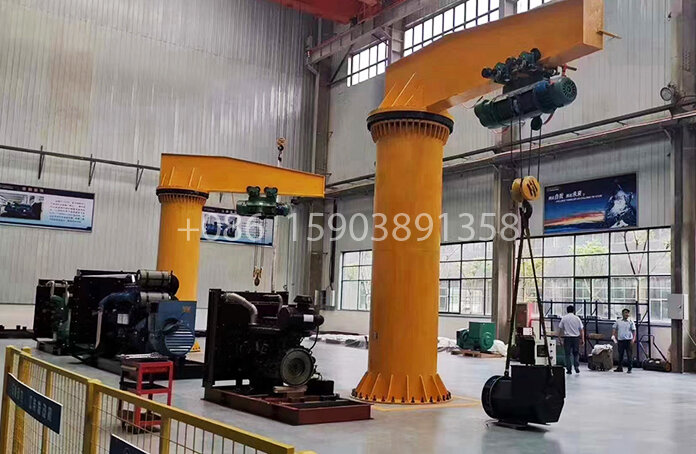

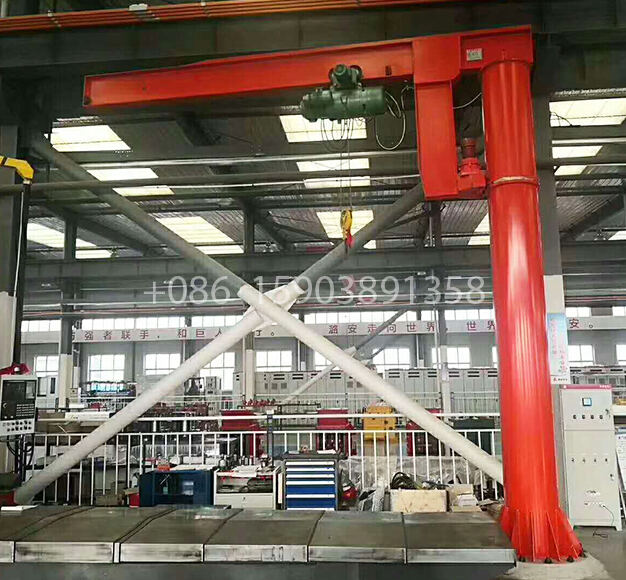

Column Mounted Cranes
A column-mounted crane, also known as a column-mounted cantilever crane, is a small to medium-sized lifting device that has emerged in recent years. With its unique structure, flexible rotation, and high energy efficiency, it offers significant advantages in short-distance, high-density lifting applications and is widely used in various industrial settings. It is a flexible and efficient small to medium-sized lifting device.
Product Description
A column-mounted crane is a small to medium-sized lifting device, also known as a column-mounted cantilever crane. Based on its core features and applications, the specific details are as follows:
Core Positioning
A small to medium-sized lifting device developed in recent years, its core function is to complete the lifting of heavy objects in various scenarios, especially suitable for short-distance, high-density lifting operations.
Structural Composition
The structure is simple, mainly composed of a column assembly, a slewing device, a boom assembly, and an electric chain hoist. The lower end of the column is fixed to a concrete foundation, and the boom can be rotated according to user needs.
Core Features
Unique structure, safe and reliable, combining high efficiency, energy saving, time saving, labor saving, and flexibility; can operate freely in three-dimensional space.
Operational Characteristics

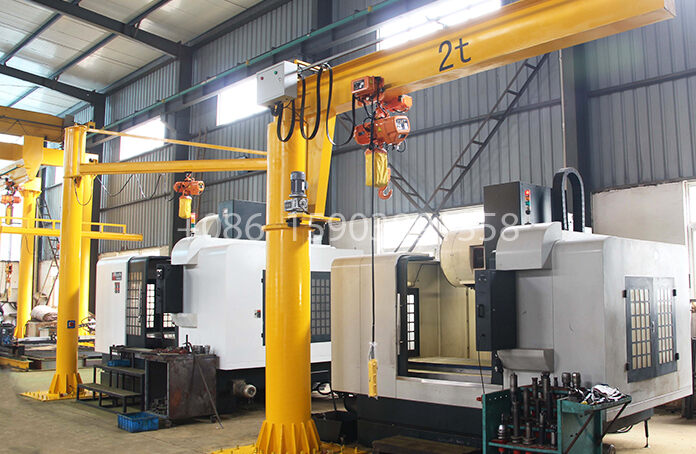

Flexible rotation, large working space, suitable for applications with small lifting capacities and circular or fan-shaped working areas; commonly used for workpiece clamping and handling on machine tools, etc.
Application Areas
Widely used in production lines, assembly lines, and machine tool loading and unloading in factories and mines, as well as for heavy object lifting in warehouses and docks.
Unique Advantages
Superior to other conventional lifting equipment in short-distance, high-density lifting applications.
Application Advantages
Due to its flexibility and efficiency, it has been widely used in various industrial scenarios and is suitable for small to medium-sized lifting needs.
Product Feature
Unique Structure, Safe and Reliable
Combining high efficiency, energy saving, time saving, labor saving, and flexibility; can operate freely in three-dimensional space; safe and convenient operation.
Flexible rotation and large working space
Excellent rotation performance, with a working range mostly circular or fan-shaped, suitable for scenarios with relatively small lifting capacities, commonly used for clamping and moving machine tool workpieces.
Simple composition
Mainly composed of a column assembly, rotation device, slewing arm assembly, and electric chain hoist. The structure is simple, and installation and maintenance are convenient. The lower end of the column is fixed to a concrete foundation, and the slewing arm can rotate according to user needs.
Strong adaptability
It has unique advantages in short-distance, high-density lifting applications, and is more suitable for such scenarios than other conventional lifting equipment.
Small to medium-sized equipment
As a small to medium-sized lifting equipment developed in recent years, it has a moderate size and is suitable for various small to medium-sized lifting scenarios.
Wheel Assembly Materials
Main materials of the product
1. Column assembly: The core is made of high-quality carbon structural steel (mostly Q235B or Q355B), welded and treated with anti-corrosion coating. It has high strength and high rigidity, and can be firmly fixed to a concrete foundation to bear various loads during the lifting process.
2. Slewing Device: The slewing components are made of high-quality alloy steel, precision machined and heat-treated, possessing excellent wear resistance and slewing flexibility; connecting parts are made of high-strength steel to ensure stable and reliable slewing.
3. Swing Arm Device: The swing arm body is made of high-quality carbon structural steel or alloy steel, welded and aged, combining lightweight and high strength, allowing for flexible slewing and adapting to fan-shaped or circular working areas.
4. Electric Chain Hoist: The hoist body is made of high-quality steel, and the chain is made of high-strength alloy steel, quenched, possessing wear resistance and strong load-bearing capacity; the motor uses a high-quality motor that meets industrial standards, ensuring stable drive and energy efficiency.
5. Auxiliary Components: Connecting parts and fasteners are made of high-strength carbon steel or stainless steel, rust-proof and corrosion-resistant; the surface is treated with paint or galvanizing for corrosion protection, extending the equipment's service life and making it suitable for industrial environments such as factories and warehouses.
